Technically impeccable. A long lasting product intuitive interface and easily updatable that combines technology, hygiene and usability.
Provides outstanding performance and longevity due to the high quality materials used in its production.
Here at NEXOR, we provide medical lighting equipment for patient and examination rooms, minor surgery and operating theatres, veterinarian clinics and dental clinics. Our medical and dental lights have energy-efficient Light Emitting Diodes (LED) that last longer, illuminate better and cost less to use than standard halogen lights.
Nova.light family stands for highest technology and quality of materials, allowing a maximum of customization in order to be adjusted to the individual needs of the surgeon.
A long lasting product, intuitive interface and easily updatable that combines technology, hygiene and usability. Provides outstanding performance and longevity due to the high quality materials used in its product.

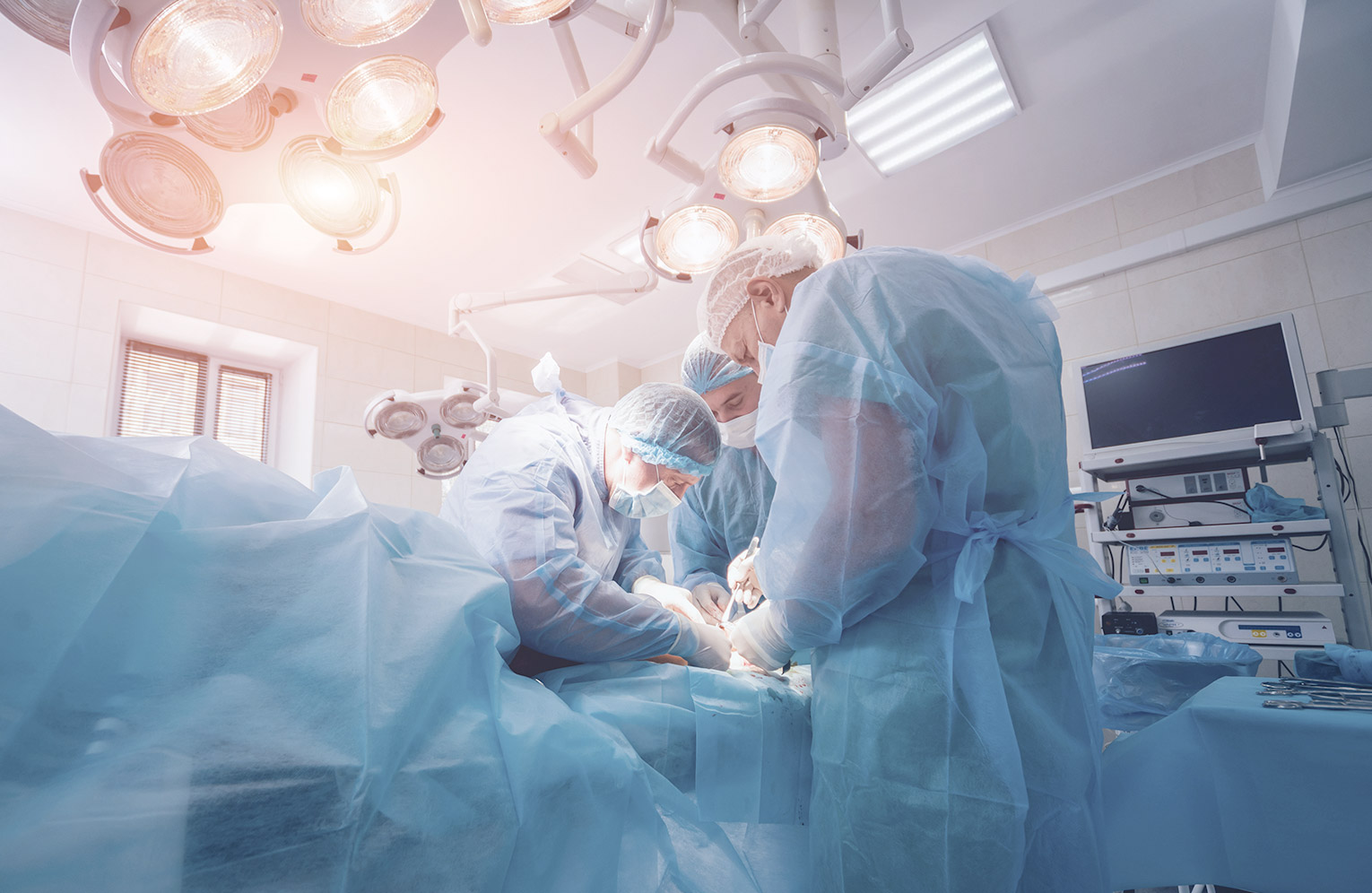

In the operating room, your skills flow like calm and constant water, where a light is more than a surgical lamp, it represents that star that accompanies you and illuminates you to save lives.

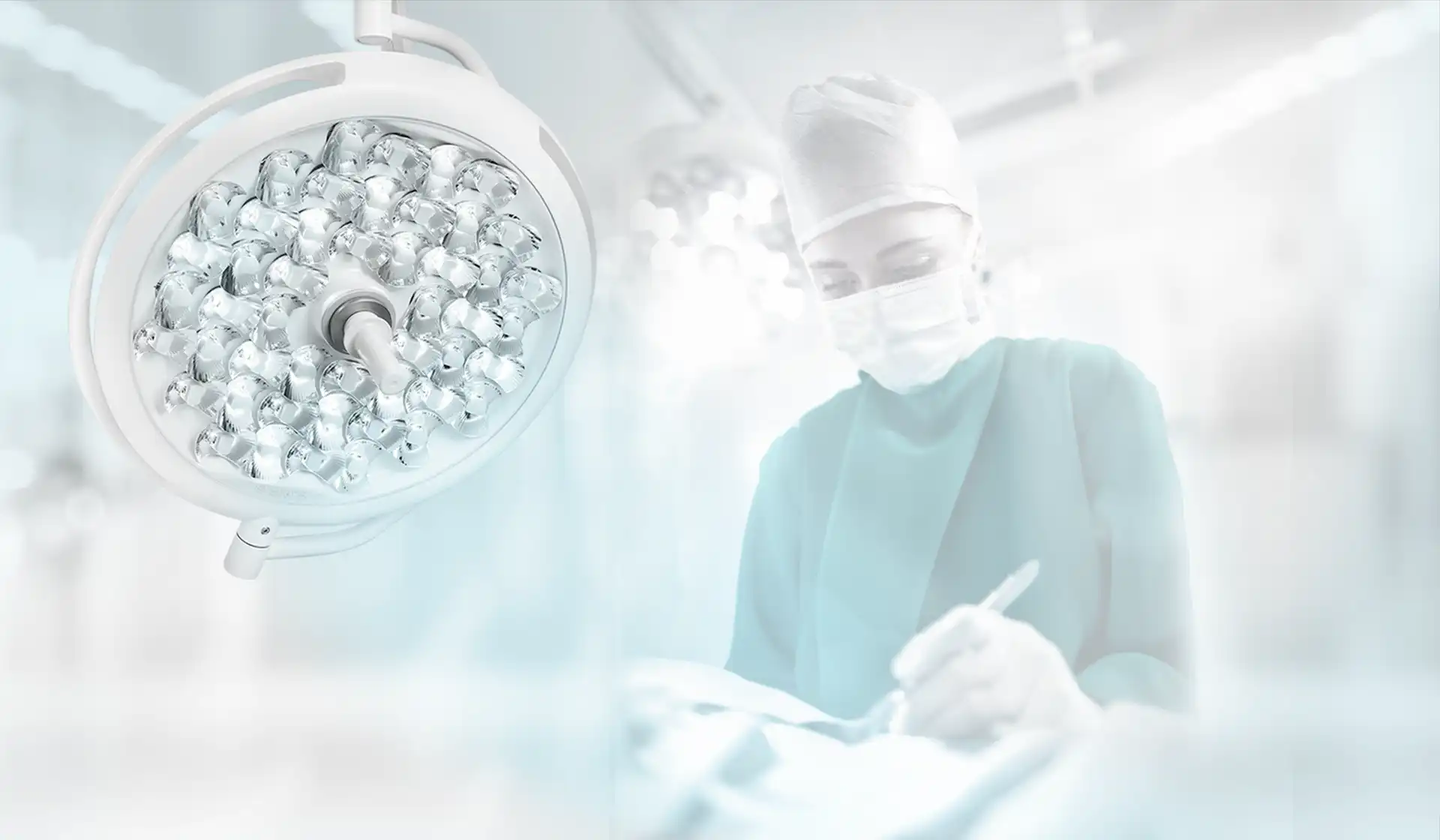

Central illumination at a distance of 1 m is 160,000 lx which is the maximum allowed by IEC 60601-2-41. Illumination depth L1 + L2 is 1,200 mm (RI 20%).

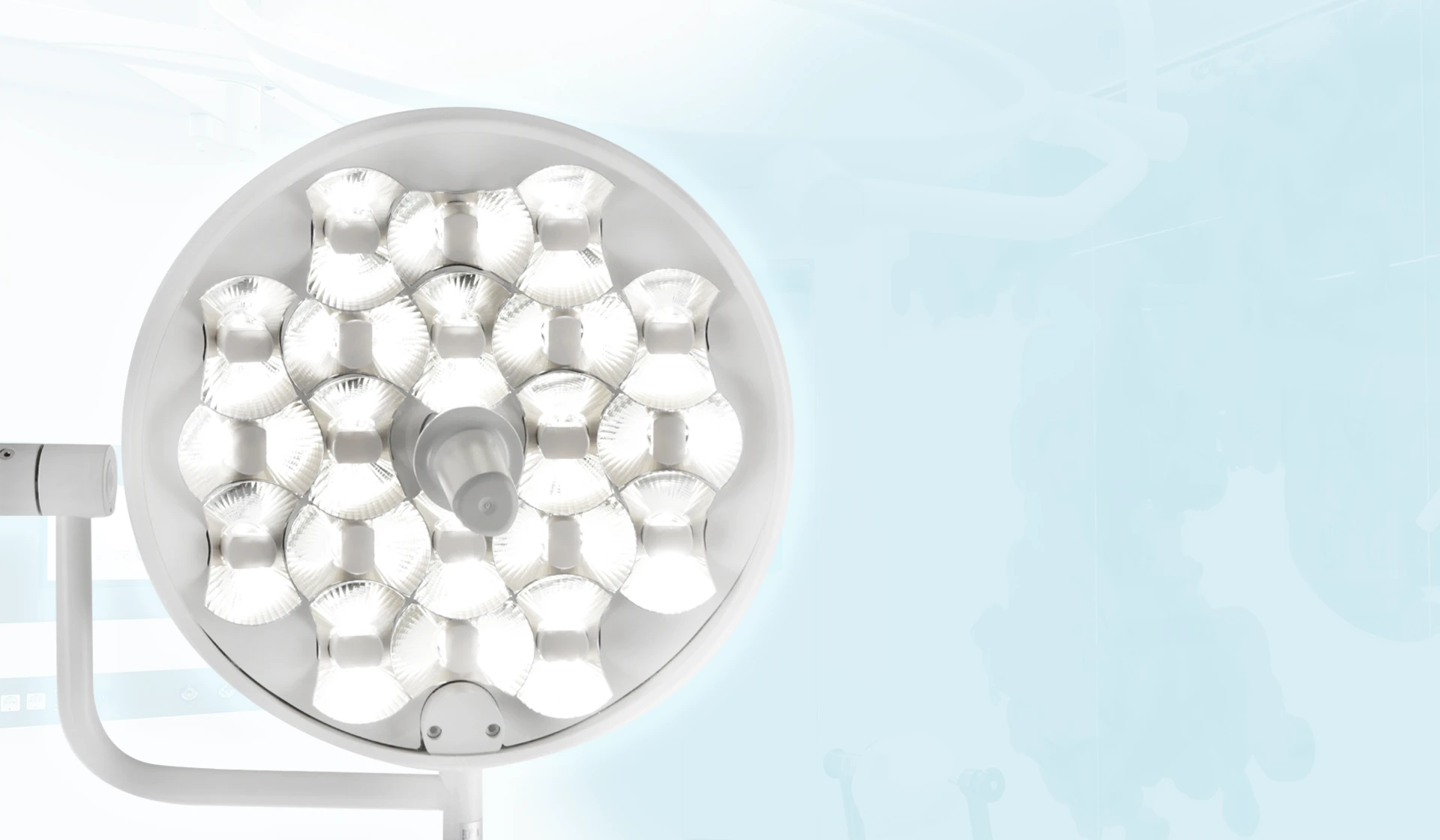

Our LED technology achieves a high light output ratio as well as greater efficiency due to high-performance LEDs, being 45W the maximum consumption per lighthead.
All our surgical lights offer a variable focus in the range of 170 to 300 mm, allowing an adjustment of the size of light field to the size of the surgical field.

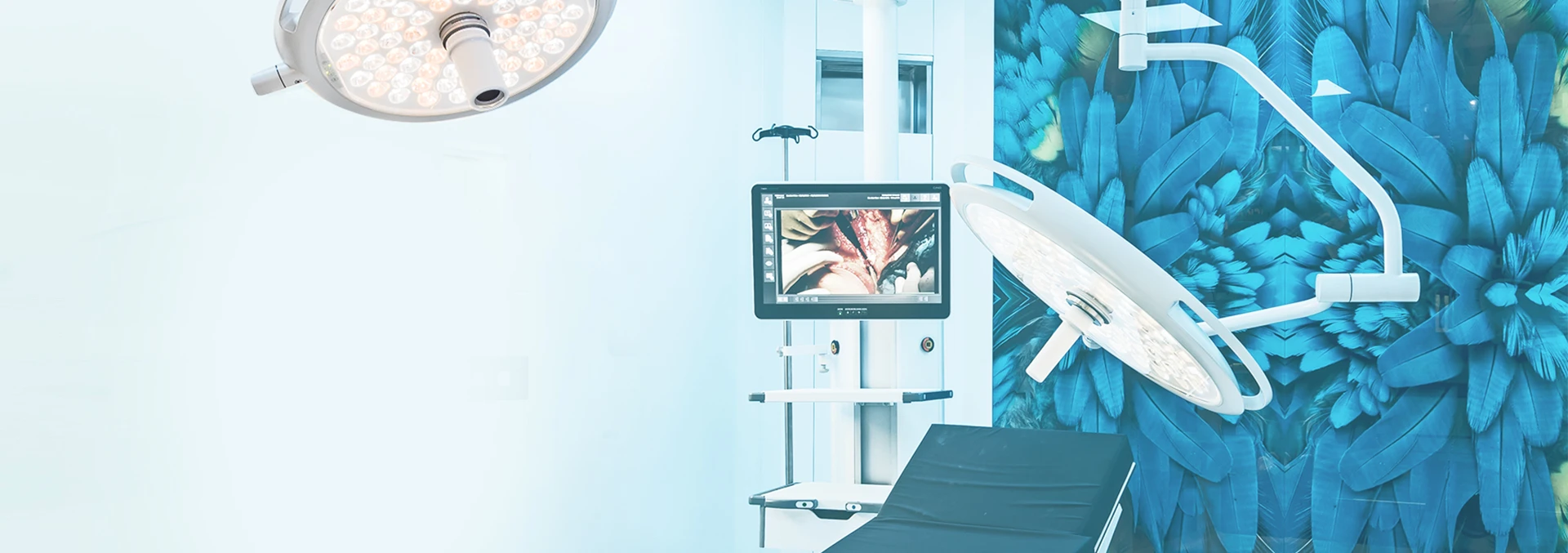

Nova.light products offer a specific illumination mode for endoscopic procedures, which is made for a reduction of glare and reflection on the monitors, while providing visibility to the OR Staff. Nova.light 800 / 600 on top offers green or blue “Ambi Lighting” as per the customer's choice, which optimises image quality monitors, glare and thus strain on the eyes. Zoned lighting creates the right light for everyone at the same time – for example a white spot for anaesthesia

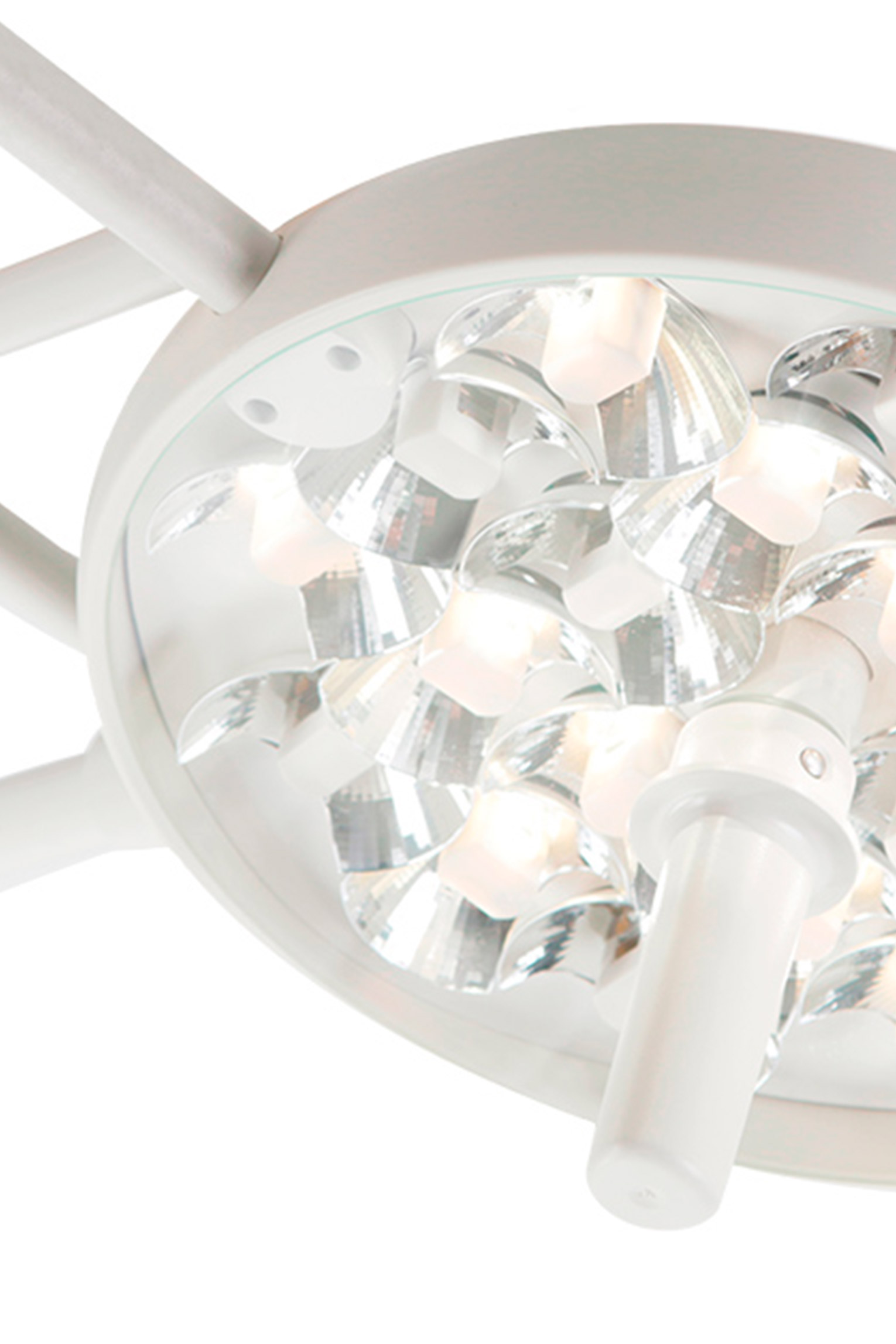

N 700 / 500 has horizontally and vertically faceted computer-designed reflectors generating independent light beams, thus allowing to compensate for the reduction of individual beams due to obstacles. The alignment of the reflectors in the dome follows the same concept, with the reflectors being positioned horizontally and vertically to achieve a homogeneous illumination over the entire light emitting surface. This avoids point illumination, and reduces the creation of shadows.
Our N 700/500 offer a colour temperature of 4900 K, reproducing natural daylight which is providing the best colour reproduction of tissues. N 800/600 allows the surgeon to decide which colour temperature is most suitable during his surgery, offering setting between 3500K and 5.500K
All Nova.light products offer an outstanding CRI of >97, paying special attention RA9 and RA 13 both offering values >97 as the reproduction of red colours (RA9) are of vital importance during surgery and skin colours (RA13) are important when evaluating a patient.

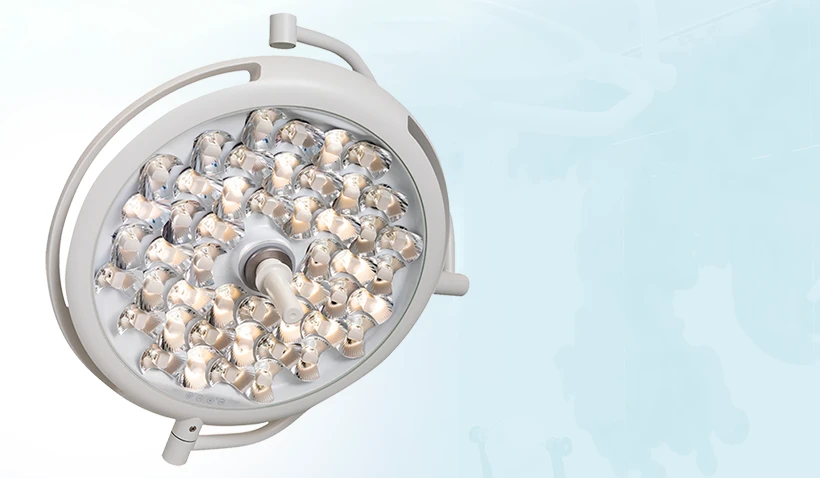

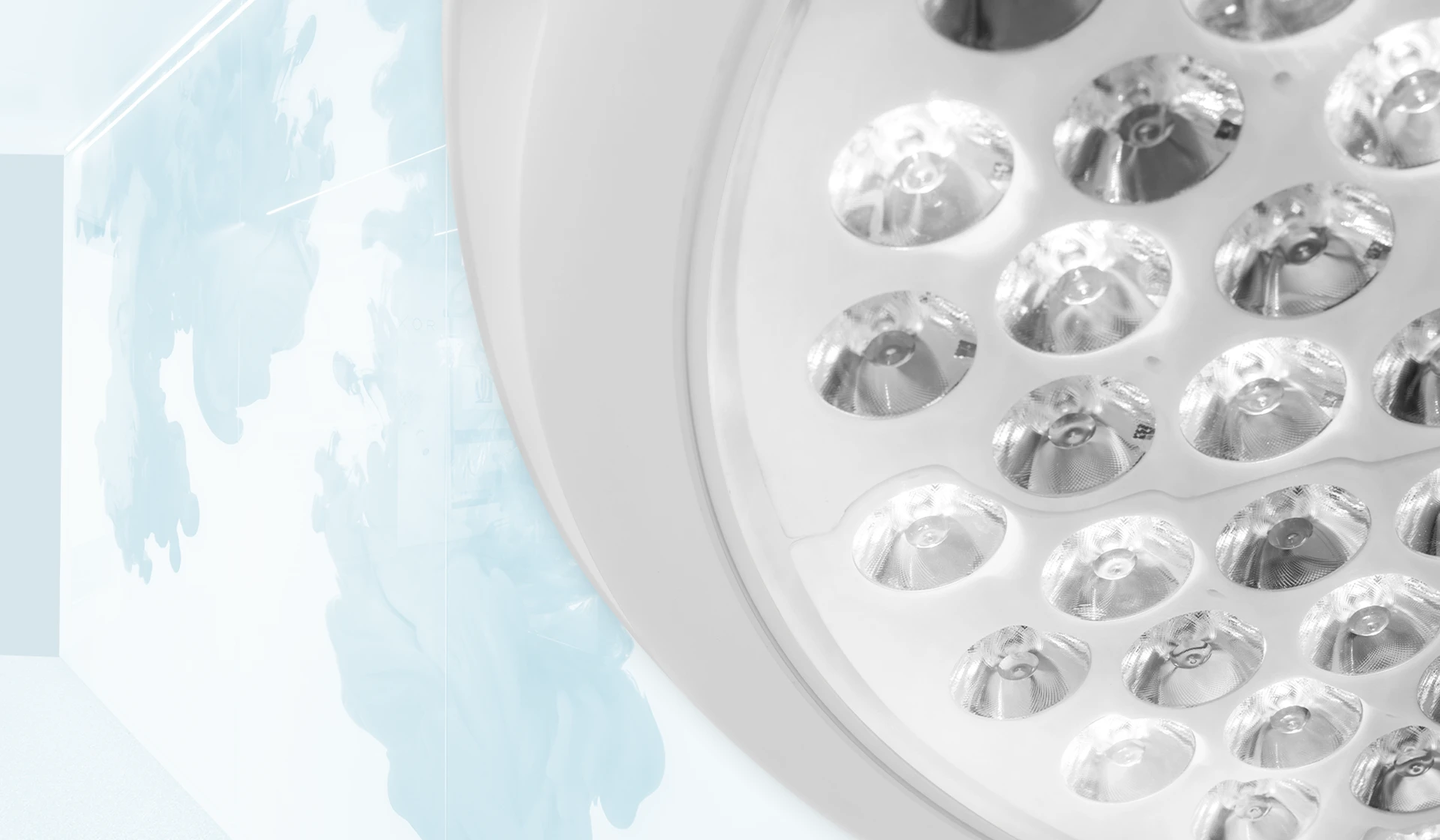

The OR-Lights are equipped with a faceted and a highly reflective dual-reflector-system for improved light efficiency. Its power consumption is as low as 35 Watts (NovaLight 500) / 45 Watts (NovaLight 700). The arrangement of the reflectors (Puzzle-System) creates a very high light emitting surface for maximal shadow resolution. It also offers a very thin design with a lighthead height of max. 55 mm.
NovaLight 500 – 28 Reflectors/56 LED.
NovaLight 700 – 48 Reflectors/96 LED.
Multi-Color OR Light allows the adjustment of colour temperature during surgery, depending on surgical application and tissue colour sensitivity.
NovaLight 800 – 77 Lenses/77 LED.
NovaLight 600 – 54 Lenses/54 LED.
All Nova.light products have been tested following DIN 1946 Part 4 to prove their suitability for work under Laminar Air Flow conditions. A flat (55mm) and aero-dynamic design combined with a high energy-efficiency producing almost no heat. Makes this product best in class.
All Nova.light products offer a light emitting surface made of laminated safety glass resistant to disinfectants and change of colour over the complete life cycle, maintaining efficiency in the illumination of a surgical field.
All Nova.light products allow the surgeons to do the main settings of the light from the sterile handle. Out of 3 main parameters, light intensity, size of light field and setting of colour temperature, the surgeons might select 2 parameters that suit them best. As a standard, lighting intensity and size of light field can be adjusted from the sterile handle.
Setting of all Nova.light products can be adjusted by the non-sterile Staff from the Key-Pad on the light head.
This applies to the On/Off – Lighting intensity – Size of Light field – Colour temperature adjustment and Ambi-Light function.
In every contact we listen carefully to your vision, needs and projects. It's the only way we know to build deep and lasting relationships with our customers, we trust you and support you to be part of your long-term success.
All Nova.light products provide access to the electronic boards through a quick access service slot with a very reduced number of tools and avoiding to dismantle the light, which leads to a reduced down-time of the OR.
Optical system allows single LED replacement, reducing costs for spare parts.
Allows the setting of the electrical parameters of the light over the lifetime, providing a guarantee of constant lighting output over the life-cycle of the product.
State of the art service access. Screwless service access with a magnetic locking mechanism to the LED control board. Clean and hygienic surface and perfect working conditions for the technical staff.
x Simple opening of the OR-Light.
x Extremely short downtime due to quick technical service.
